Panna is the leader in gas chromatography. Our mission is to develop world-leading Gas Chromatography instruments, technologies and service parts. We offer integrated analysis solutions for customers throughout oil, chemical, environment and food safety industries
Panna Instruments has long been valuing on customers' needs, especially in customized service. Now Panna Instruments has set up sourcing, R & D, trading and after-sales site in China to further meet demands from various industries.To enlarge its capacity, a new manufacturing centerwith 1000 square meters in China will come into operation in early 2013 to better serve the customer world wide.
As the professional GC expert, Panna Instruments is focusing, efficient and innovative, striving to keep the leading position in Gas Chromatography
Focusing on developing world-leading Gas Chromatography, Panna Instruments now has portable GC 80 series, lab GCA91series, Head space sampler and various GC service parts & consumables. We guarantee to provide quality GC and tailor-made solutions to each customer

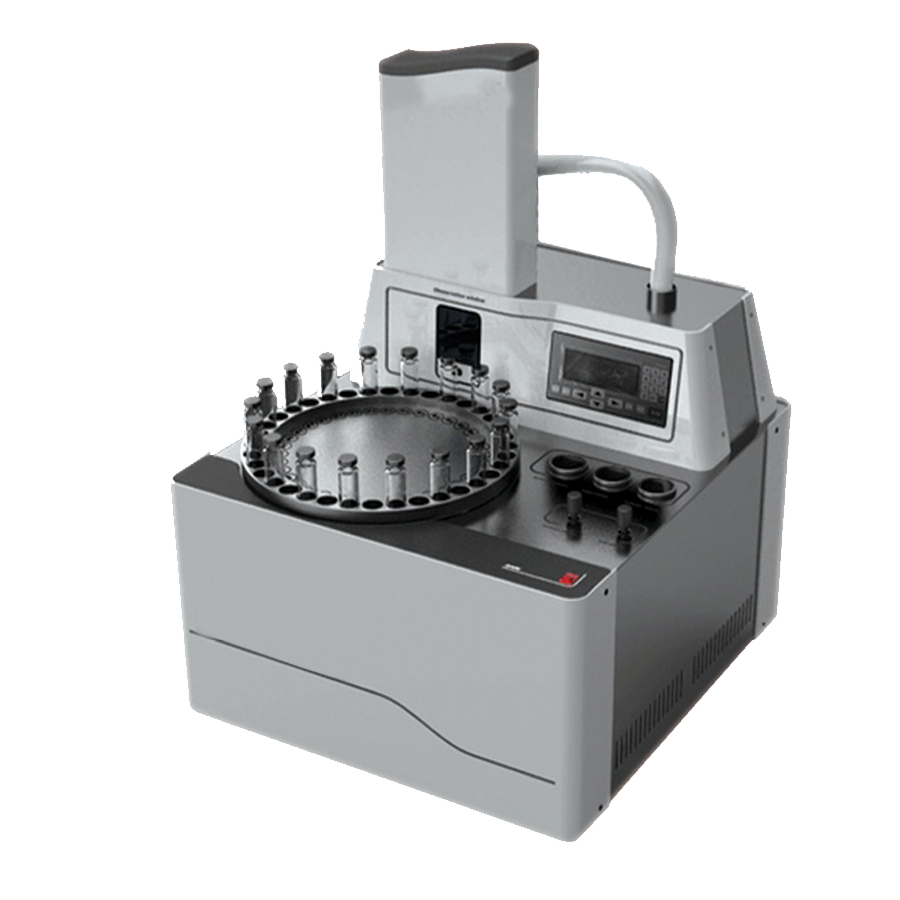

With a 16-position sample tray and integrated utmost precision of the automatic sampling system, Echrom autosampler is the right choice for automated analysis of batches of samples in your daily laboratory work.

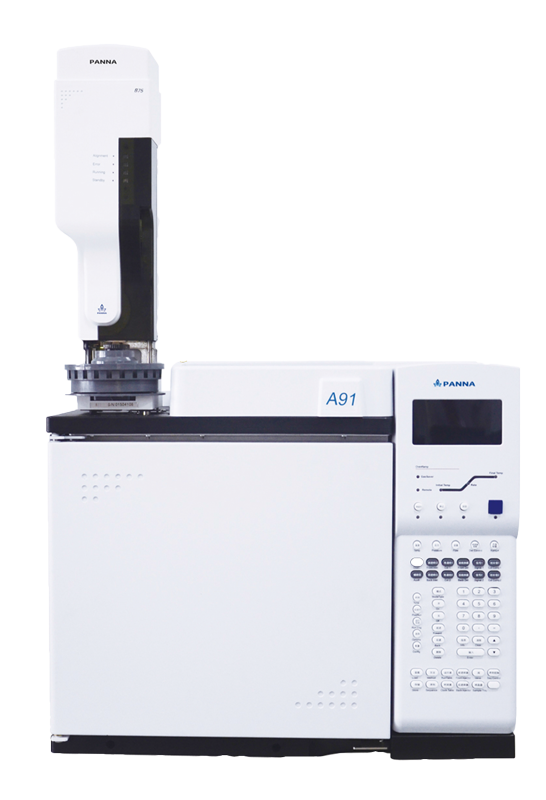

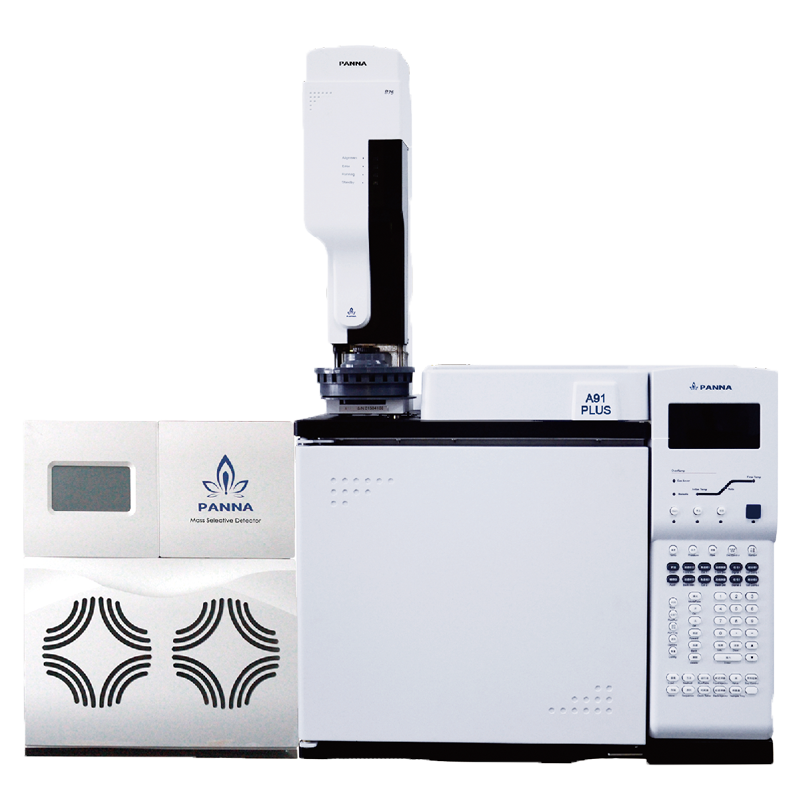

Available in packed and capillary column configuration, Panna GC A91 is designed with dual channel gas chromatography platform and 2 detectors for your tailor-made solution. High performance AEFC with 0.01 psi accuracy helps to boost your daily analysis efficiency.

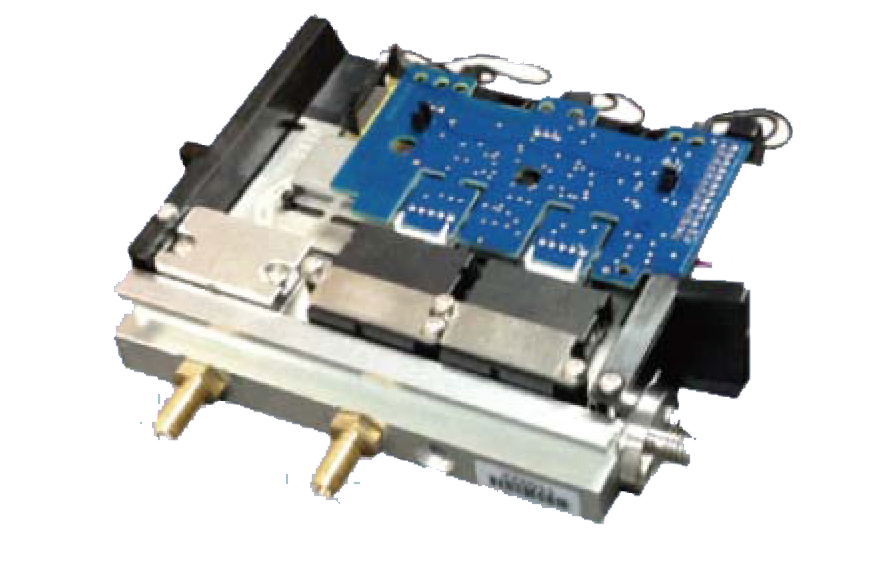

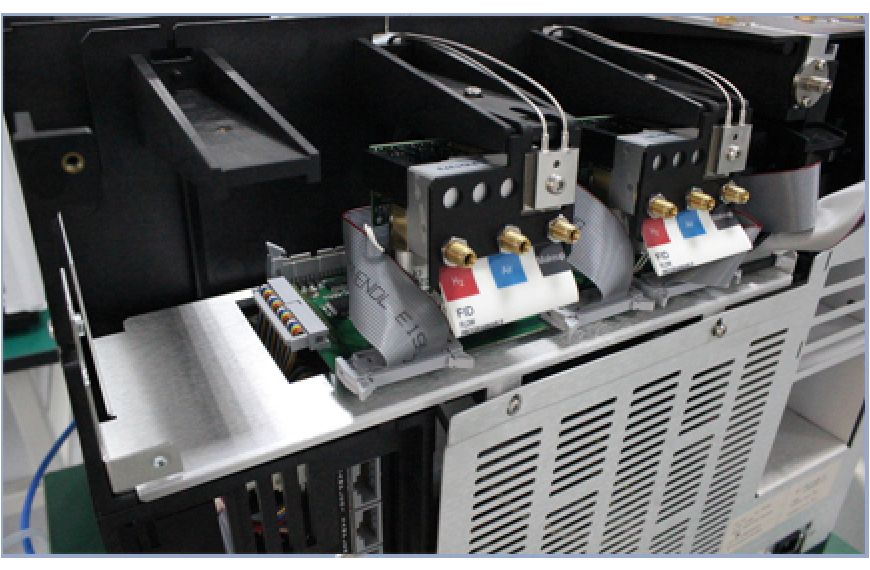

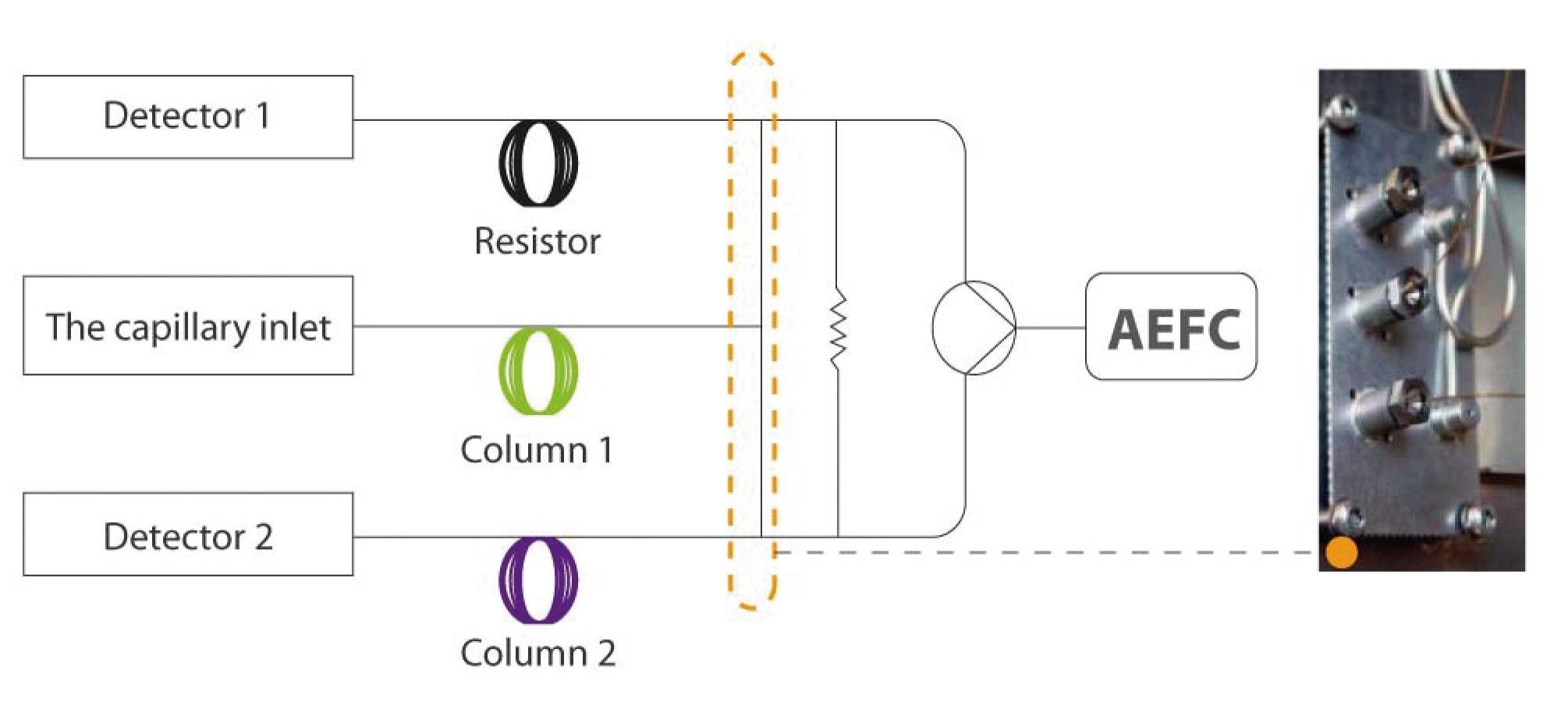

Panna GC A91 has advanced automated electronic flow control module which controls pressures and flows for injector, detectors and aux gas. The AEFC accuracy of 0.01 psi ensures excellent retention time repeatability

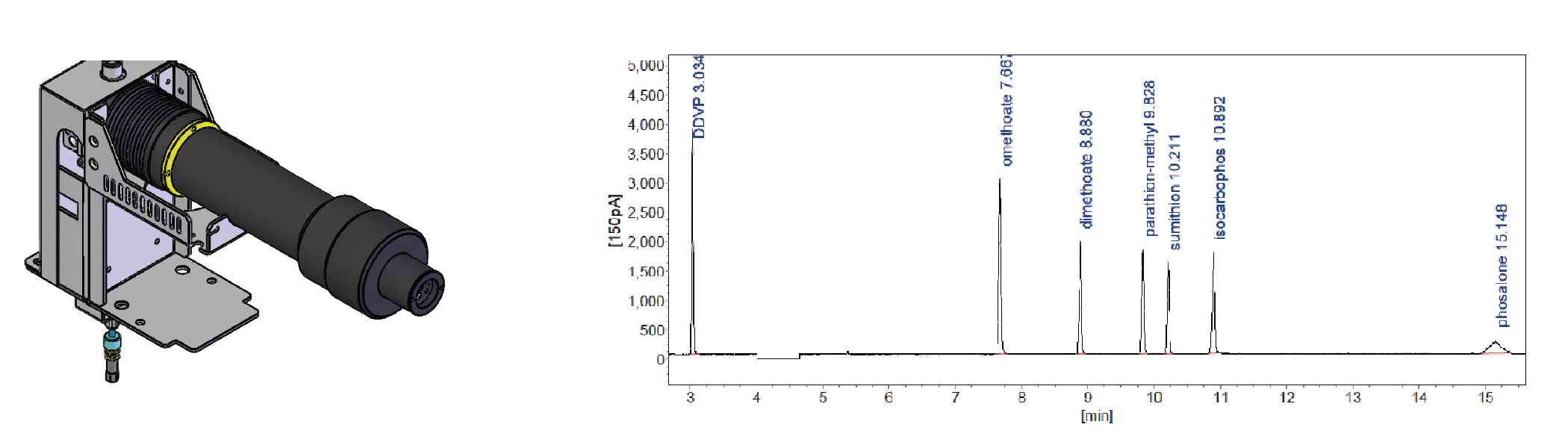

Six detectors are available to meet comprehensive needs, applications, particular solutions with different configurations. Now we have developed: Flame Ionization, Thermal Conductivity, Micro Electron Capture, Flame Photometric, Nitrogen Phosphorus detectors, and Helium Ionization detectors

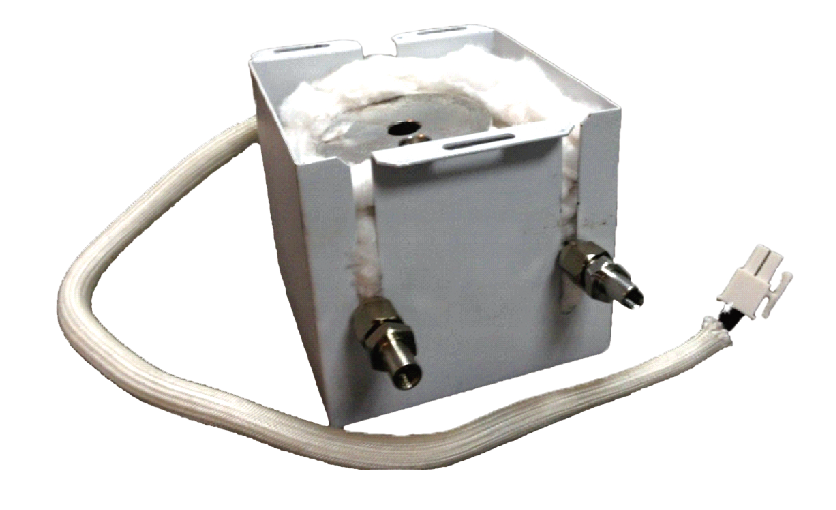

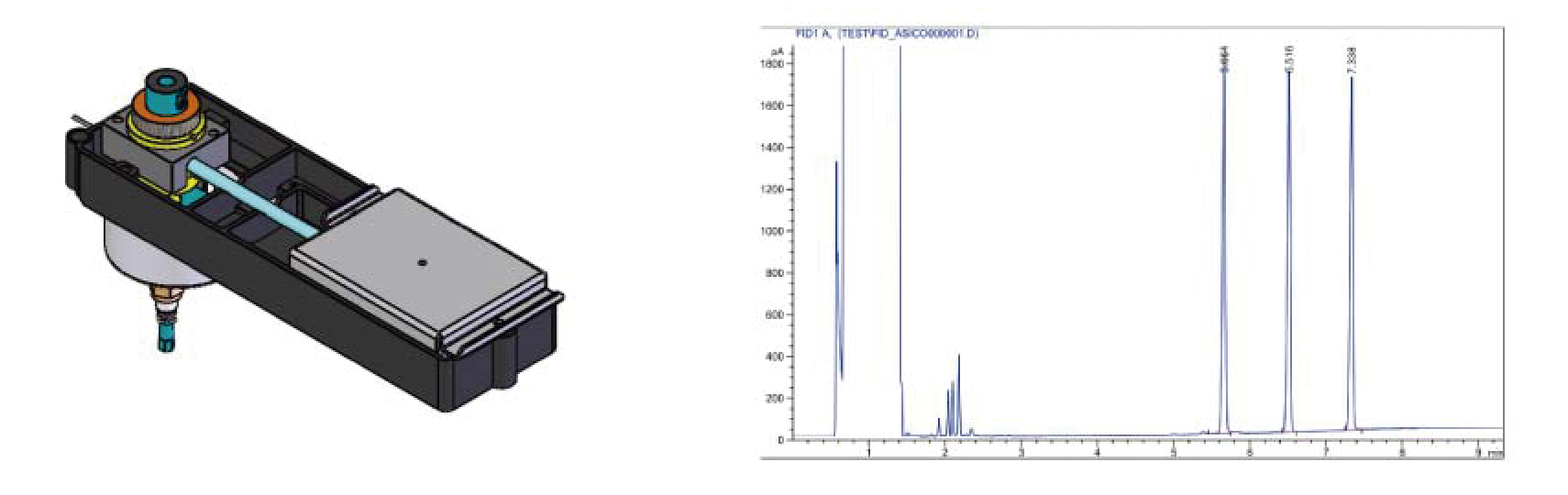

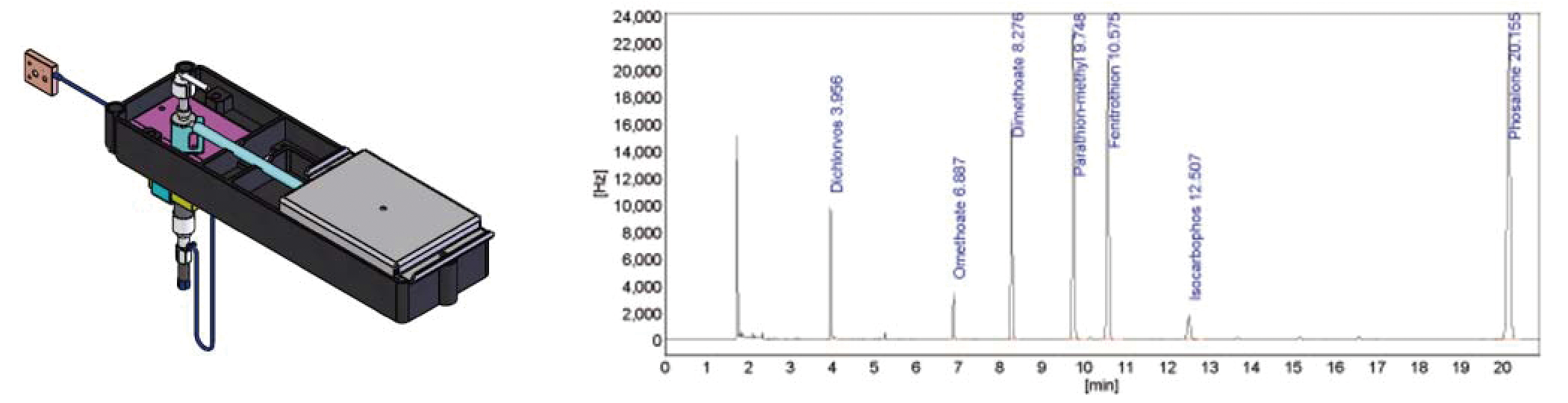

Separated column heater box is innovative revolution of panna. Not all the column are installed in one oven, we designed small column box with heater that can be installed outside oven,each box can set individual work temp for each column to run under their optimized condition.

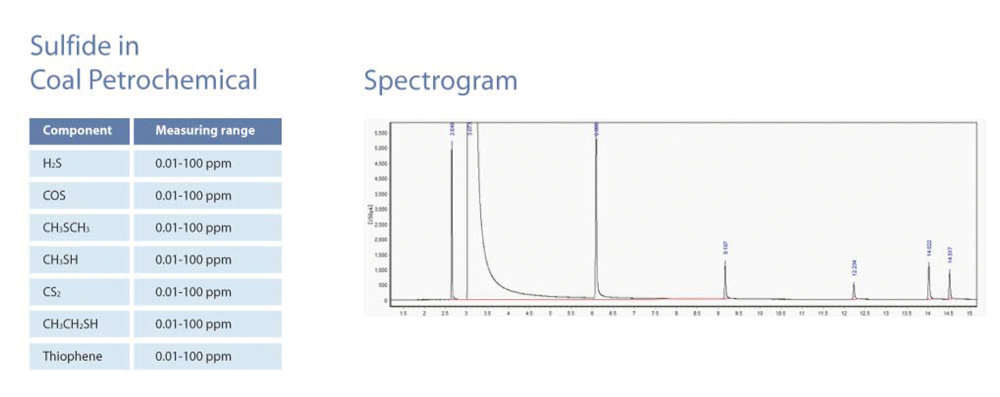

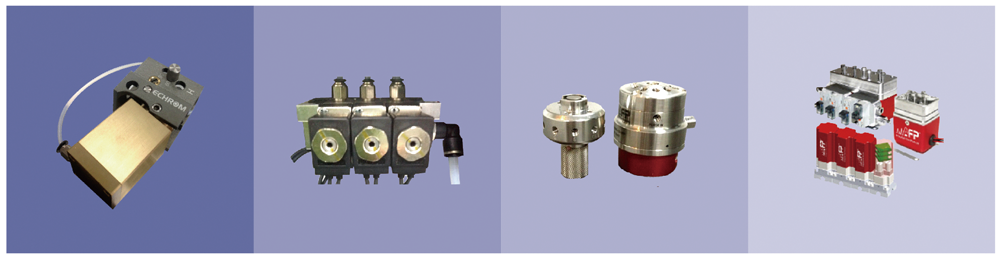

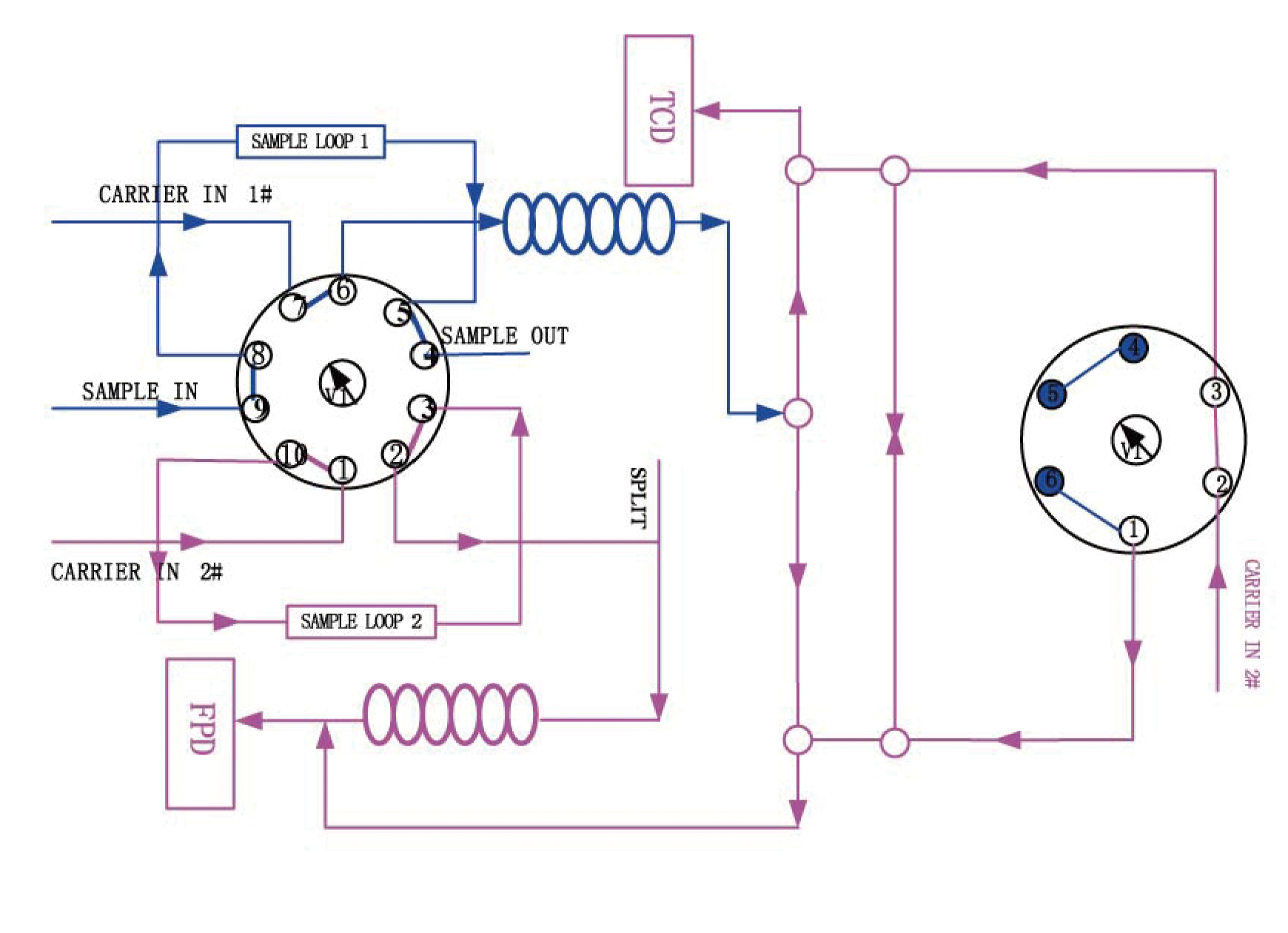

Panna has developed rich solutions in petrochemical,carbon chemical,gas and food safety industry.Tailor-made configurations are available including a wide range of detectors,column, and valve systems.

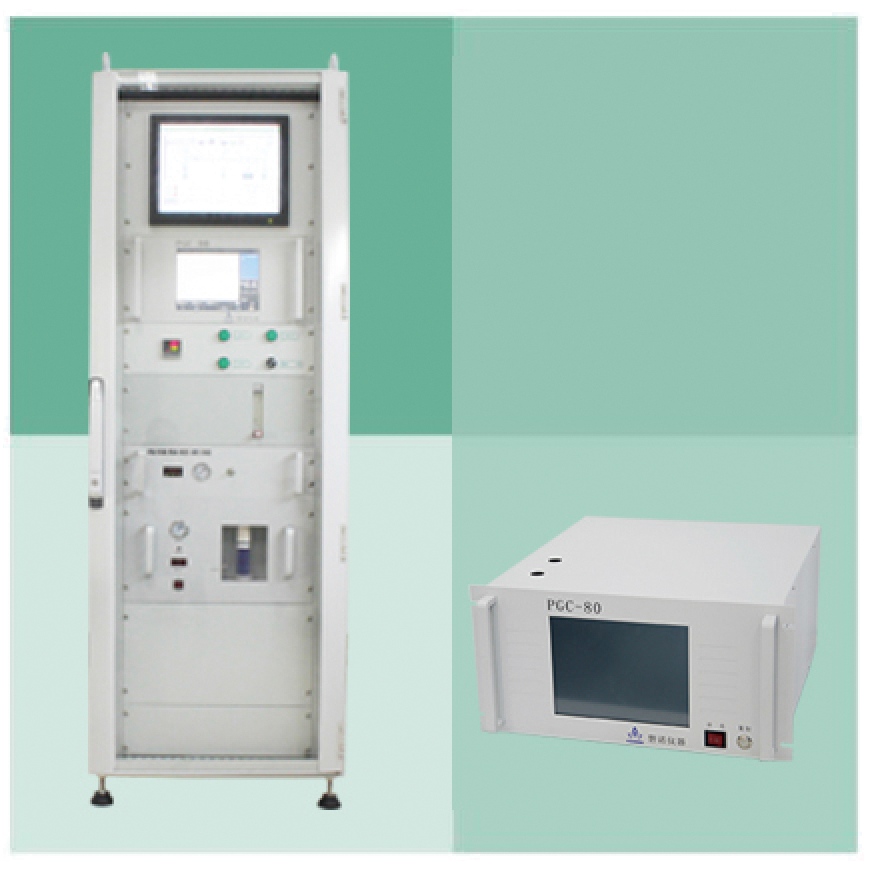

Panna PGC-80 series GC is a kind of portable on-line instrument to meet different demands in various areas.
A chemical change often occurs during sample storage and transportation which may lead to analysis result hysteresis. Panna instruments developed PGC-80 series,which is portable with compact size and found applications in petrochemical, security check and environmental monitoring.
Panna provide tailor-made solutions. PGC-80's concept of smart,portable,Echrom has developed solutions for mud logging transformer oil,NMTHC respectively.

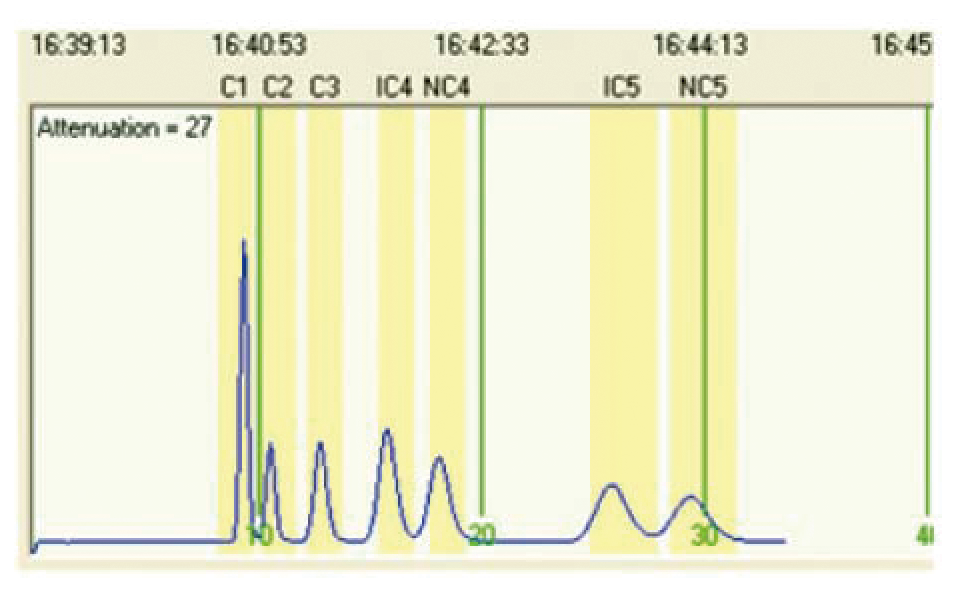

Gas Chromatography is wildly used in field well drilling, providing a quick test for mud logging. Panna developed PGC-80 Mud Logging special, equipped with dual valves inlets and FID detectors, it offers simplicity for users when they are working on logging field.
25 sec analyzes C1- C8, 115 sec analyzes C1- C8
Intelligent control, auto ignition, auto base line calibration, automatic fault diagnosis Measuring scope: component 5*10 to the power of 6 - 100 %, total hydrocarbon: 10 to the power of -5-100%

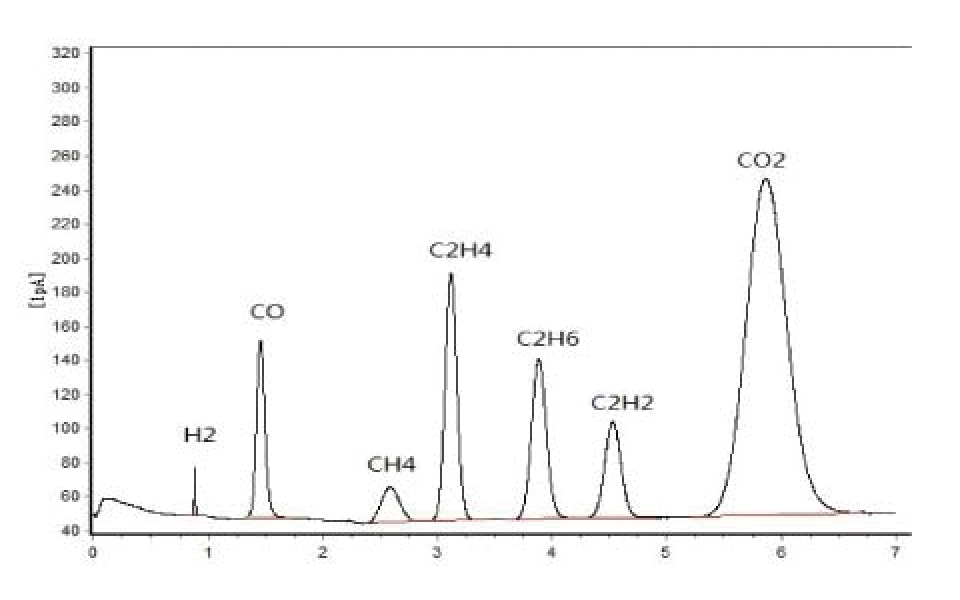

The quality of transformer oil is very crucial to the operation of transformer. Power transformers can operate in a hostile environment and cause thermal decomposition of oil, when some hydrocarbon such as H2, CO, CO2, C2H2, C2H4, C2H6 will be generated. Compositions of the dissolved gases, rates of generation, and specific content ratios can be used to indicate the conditions of the transformers

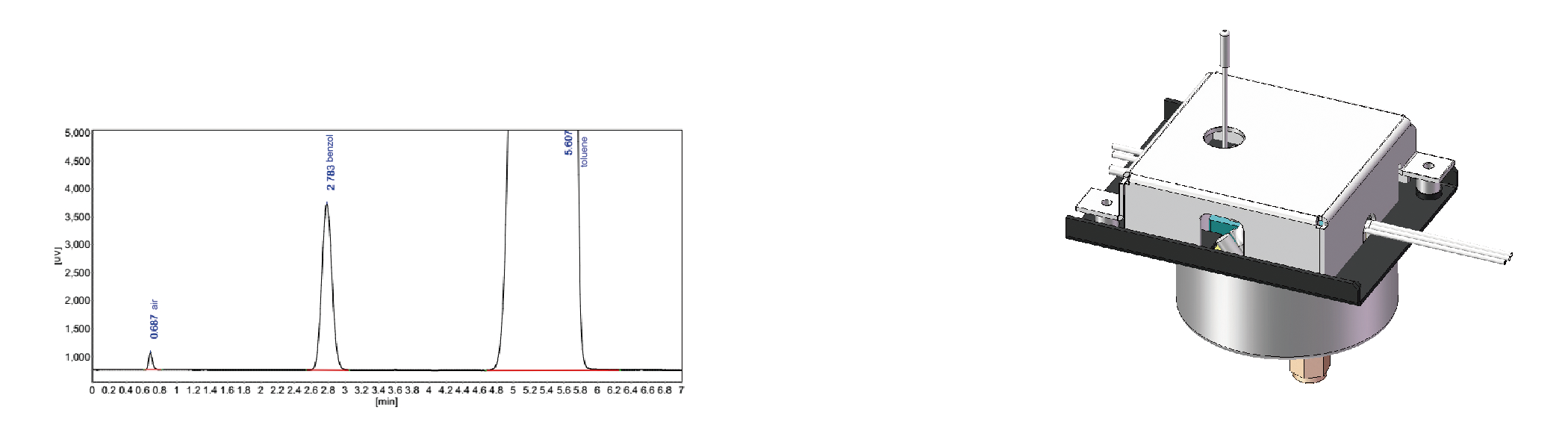

PGC-80 Transformer Oil special is newly developed for on-site test of power transformer. Advanced all-round design concept driven by customer needs, including visual key board, short analysis cycle and less than 5 min setting time ofTCD, it has been well recognized in power industry

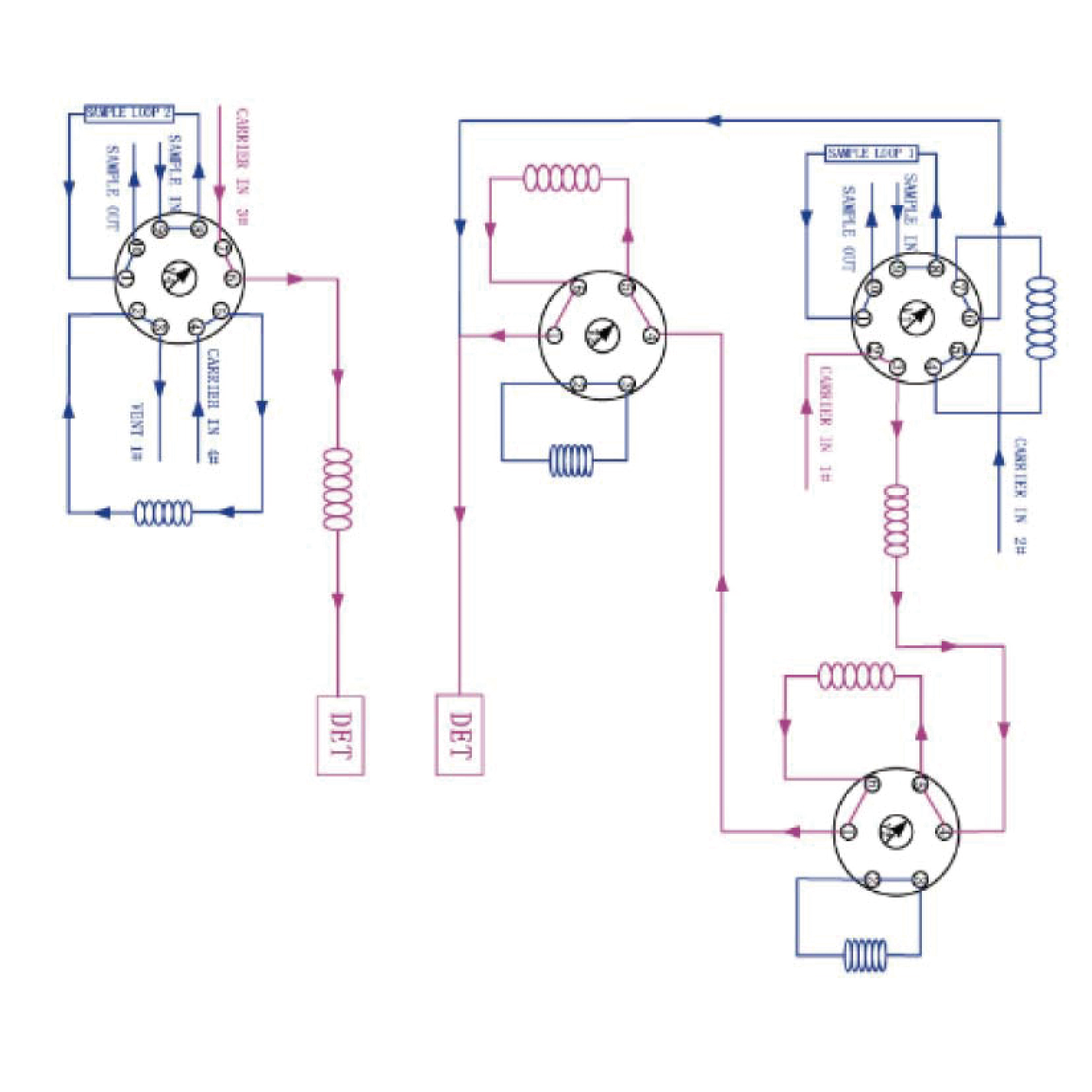

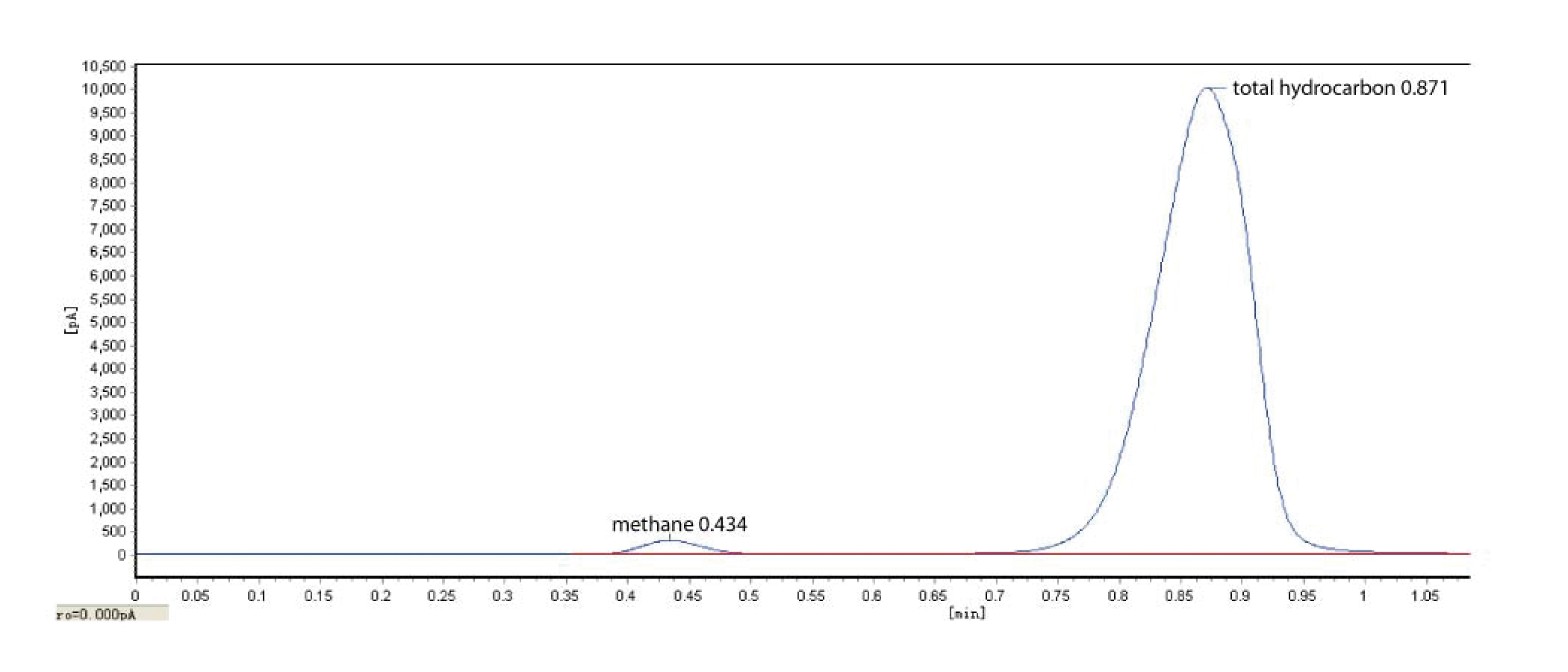

Panna PGC-80 NMTHC special is a back-flush gas chromatography (GC) system designed for automated measurements of methane and Non-met hane Total Hydrocarbon with high accuracy, sensitivity and stability
This instrument provides a direct measurement of non-methane concentrations with only one injection

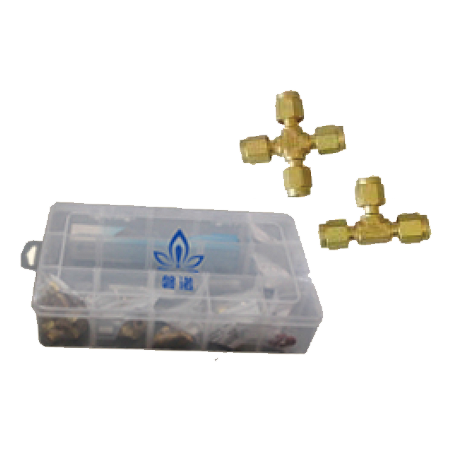

As the leading Gas Chromatography and solution provider, Panna is focusing on one-stop GC solutions. We serve millions of customers in chemical, environmental, food safety, biotech, and public security industry. Panna support our customer throughout GC solution consulting, on-site training, GC repair & maintenance and service parts & consumables supply.

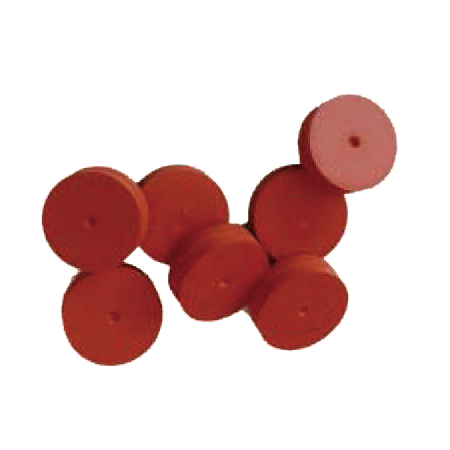

Septum is one of the most common used consumable, which isolated inside system from outside. Septum should be thermostability, nondegradable and punctur esistant withgood leak tightness.It need toberegularly replaced to guarantee stable function ofGC instrument Theseptum vary from performance andmaterial,weneed to choose the right one according to the type ofinlet and test condition

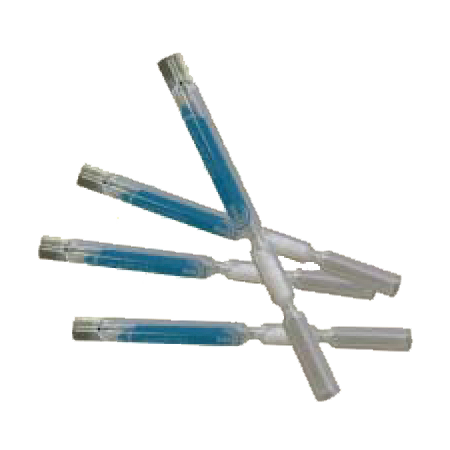

Liner tube is one of the most important components in GC.The quality of it impacts the result greatly, especially to trace analysis and active ingredient analysis. After inert process, Panna liner tube will not absorb components in sample which might cause tailing peak and lower repeatability

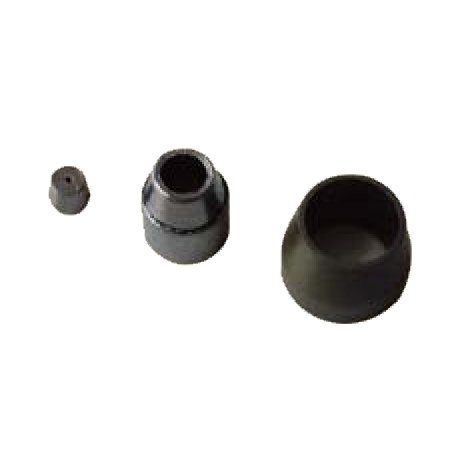

Made from 99.99% high purity graphite, the ferrule can resist to high temperature of 450 C without any loss. Incorrect use or secondary use may result in inconformity of the analysis. Unmatched graphite ferrule may let air or pollution into the GC system and affect column efficiency.

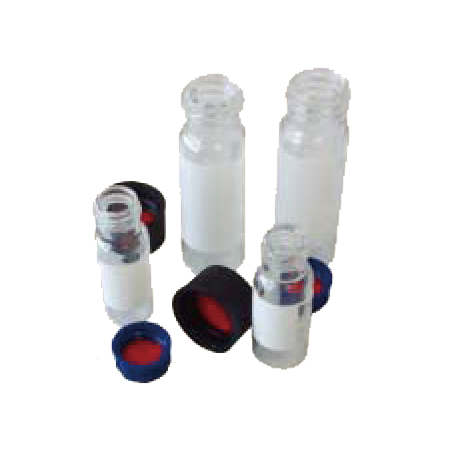

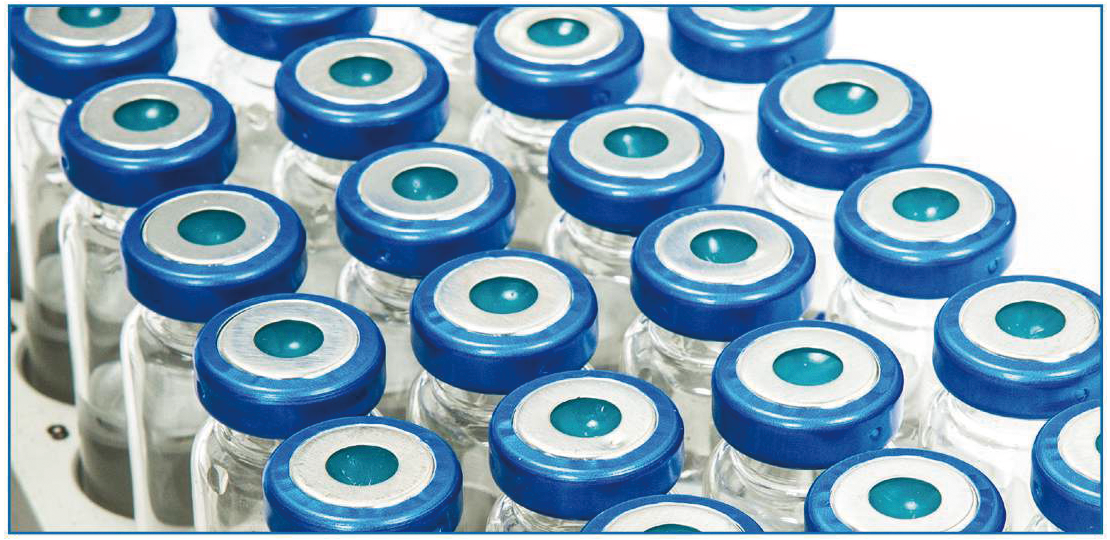

All the vials are made from quality hydrolysis glass. Panna provides transparent and brown vials with 9ml and 20ml volume. Also there are matching cap and gasket for choice. All the gaskets are made from high quality PTFE/silica gel, which are inert and tolerant of multiple sampling

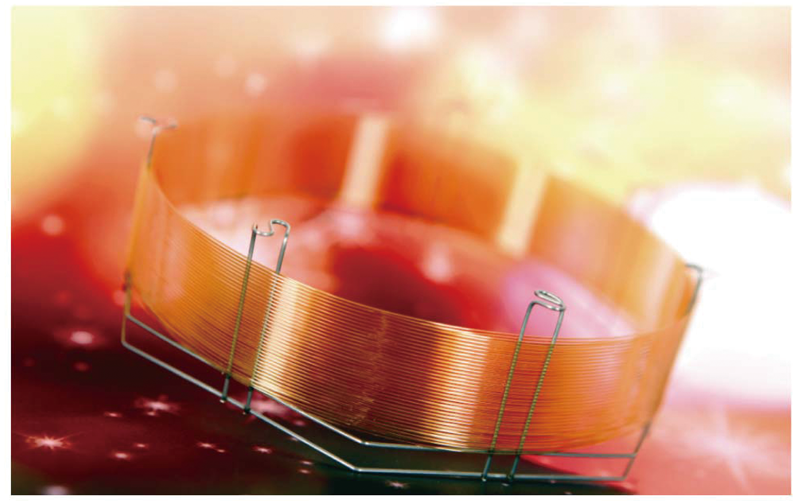

Panna -Restek offers a wide range of GC columns in the industry. Panna guarantee provide high performance column with low bleed and stable inertness.
| Type | Description | Application |
|---|---|---|
| PN-1 | 100% Methylpolysilicone | Hydrocarbon Compounds |
| PN-5 | 1% Vinyl 5% Phenyl Methicone | Arene,Phenol, Ester, Alcohol |
| PN-1701 | 7% Cyanopropyl 7% Phenyl Methicone | Ester, Alcohol, Nitrocompound |
| PN-624 | 6% Cyanopropyl-phenyl 94% Dimethytpolysiloxane | Olefins,Alcohol,EPA volatiles |
| PN-FFAP | Modified Polyethylene Glycol | Ester, Alcohol, Arene |
| PN-Basic WAX | Polyethylene glycol-20M | Hydrocarbons, amines and phenols |
| PN-Alumina | Aluminium oxide | Natural gas, refinery gas, fuel gas |
| PN-Plot-Q | Bonded polystyrene-divinylbenzene | Ethylene, acetylene, paraffin |
Power
Available Options

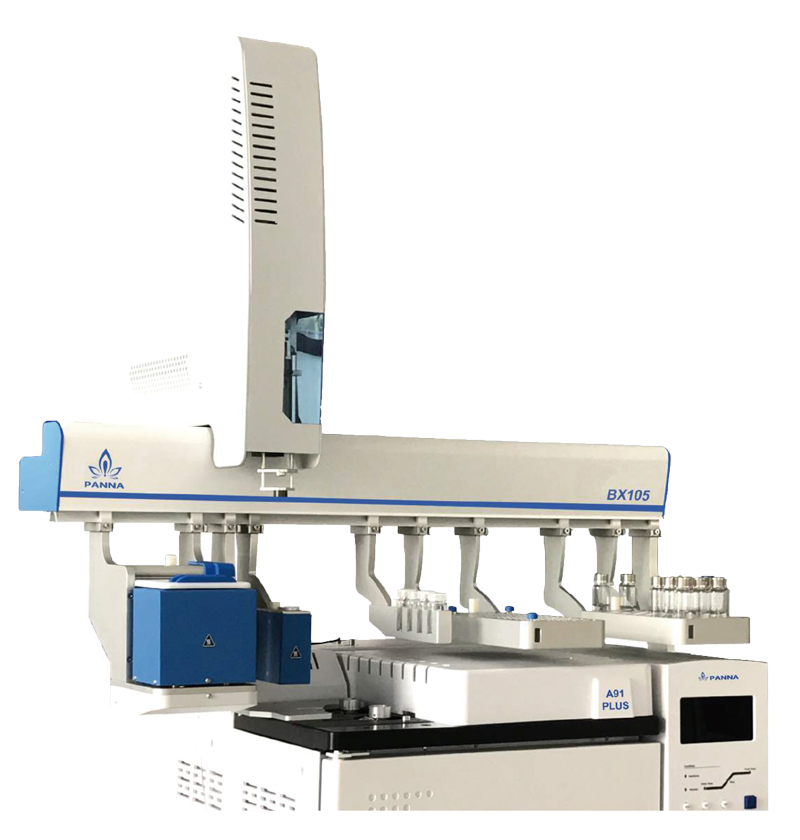

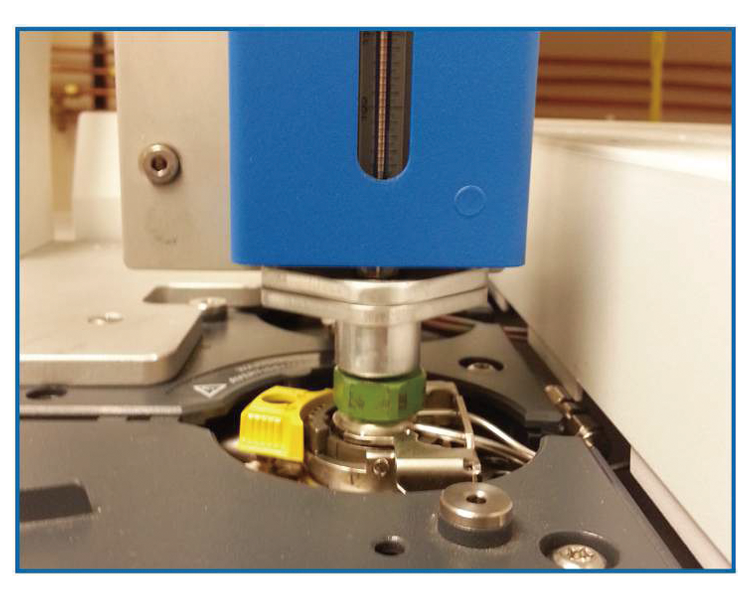

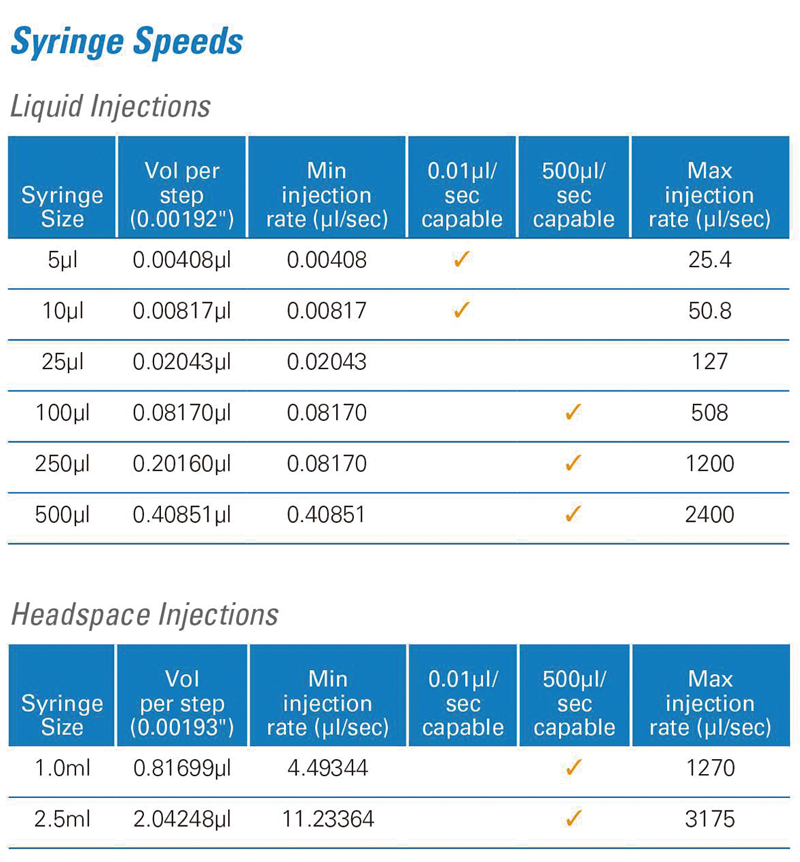

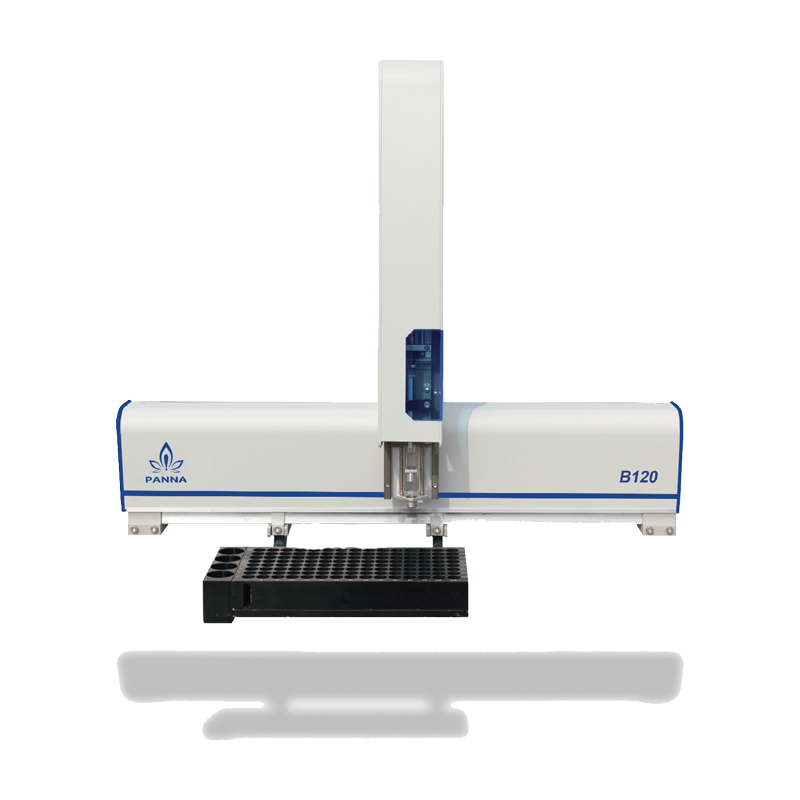

Delivers standard or large volume injection of up to 500 uL: BX105 performs liquid sample introduct ion with the ab ilit y to control injection speeds from ultra-fast to very slow for optimized, reproducible results. Stream lined design with robust engineering gives analysts confidence

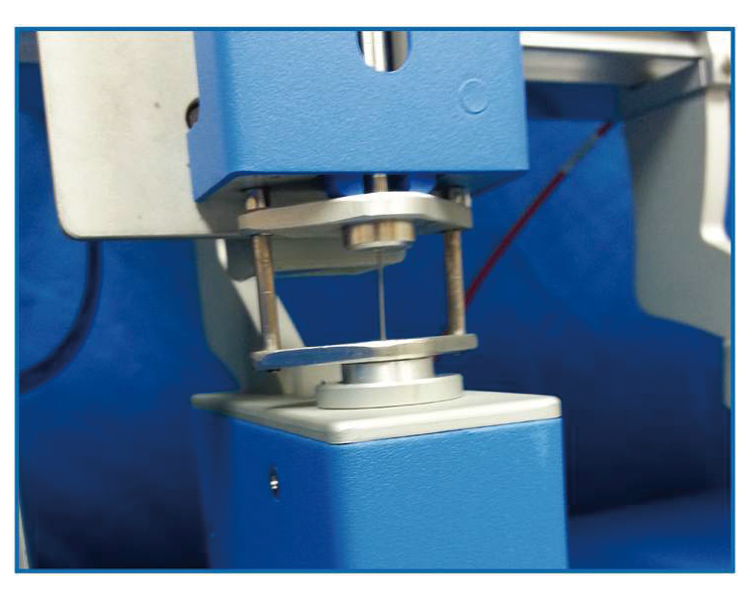

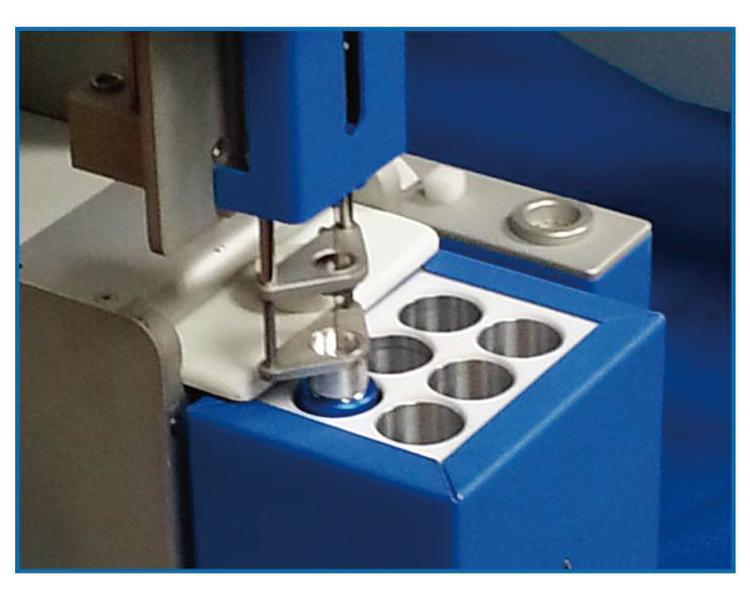

BX10 5 provides automation to your liq uid or headspace SPME analysis, including fiber conditioning, sample extraction, and fiber desorption. Derivatization can be performed on the fiber or reagents added to the sample prior to extraction. BX105 can handle all commercially available fibers.

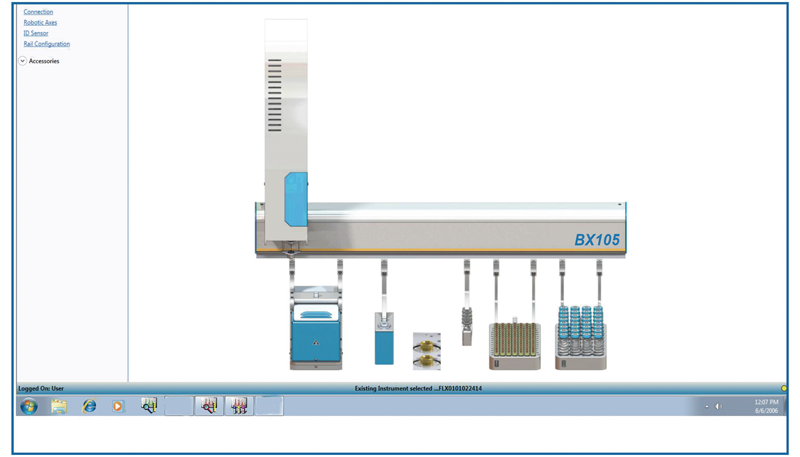

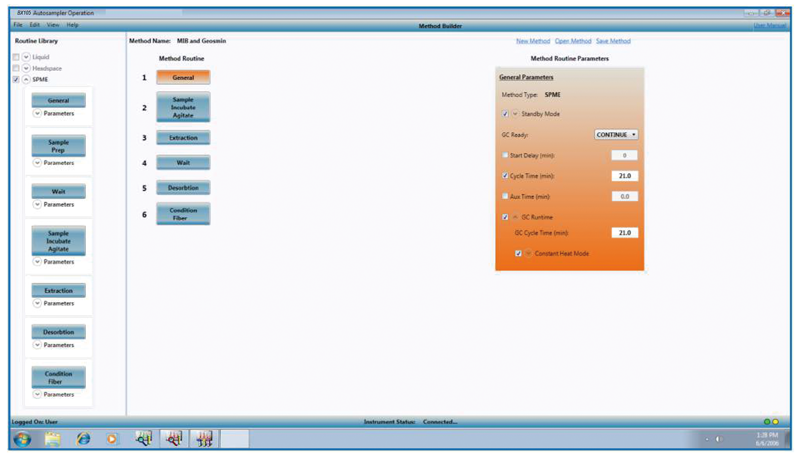

BX105 puts you in control of productivity. With user-friendly software that enables the analysis of multiple samples at a time, BX105 optimizes your GC or GC/MS's productivity. The syringe is heated and purged with clean carrier gas to prevent carryover.

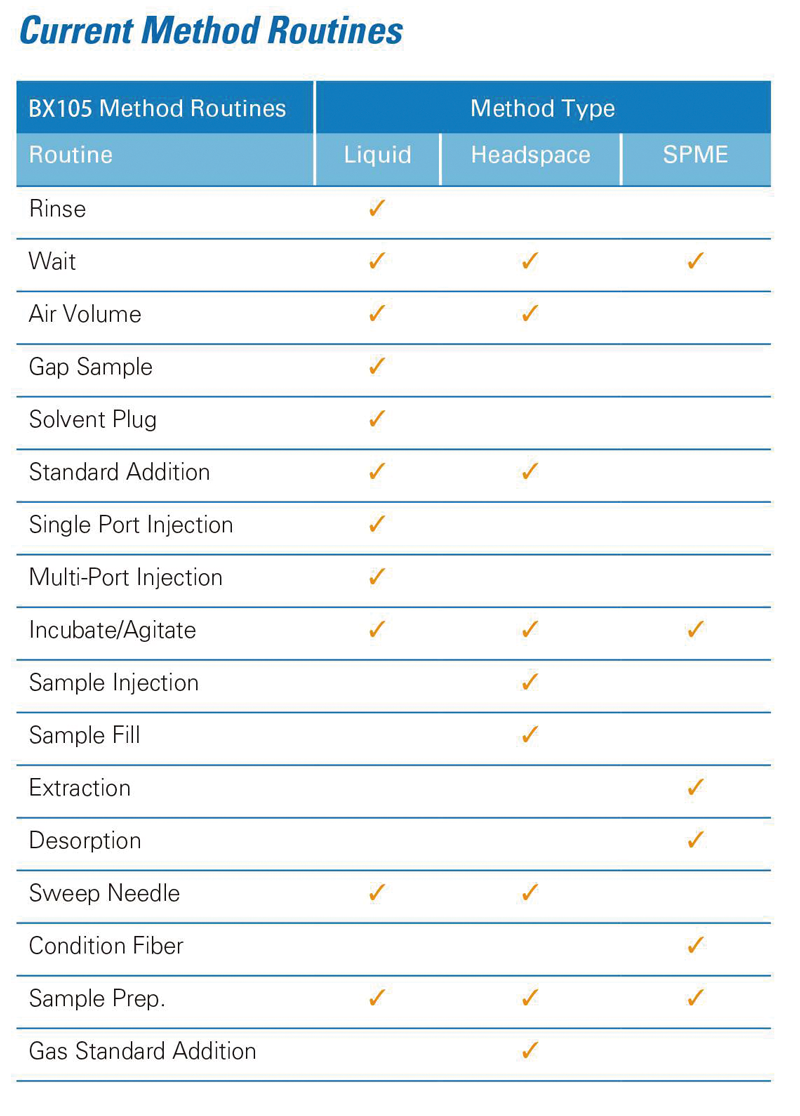

BX105, with sample preparation functionality, delivers simplified automation of liquid sample preparation This in cludes:

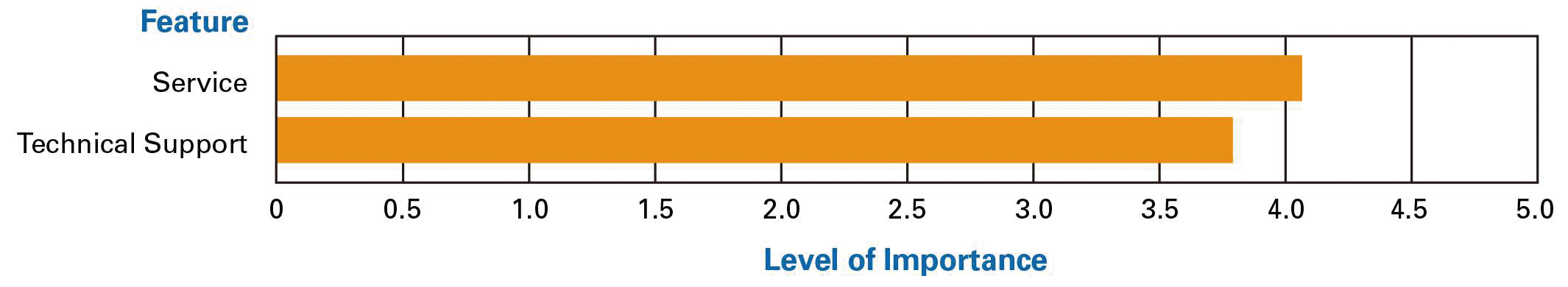

based on a survey of analysts
Size :
Weight :
Tray options :
Power in :

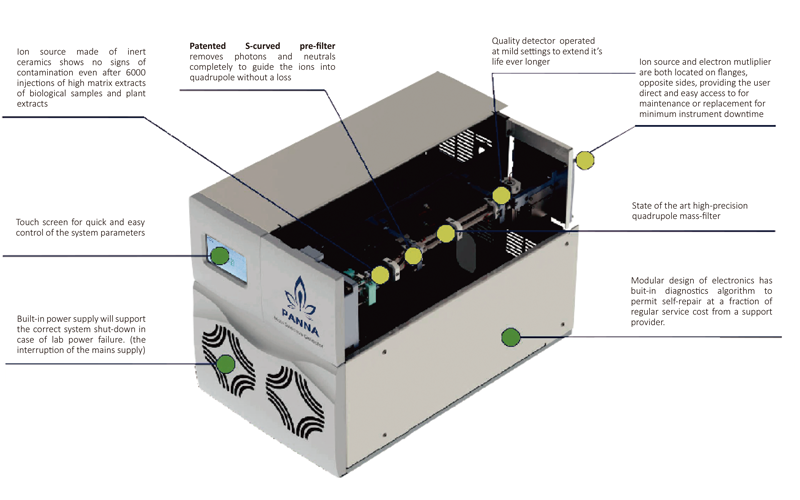

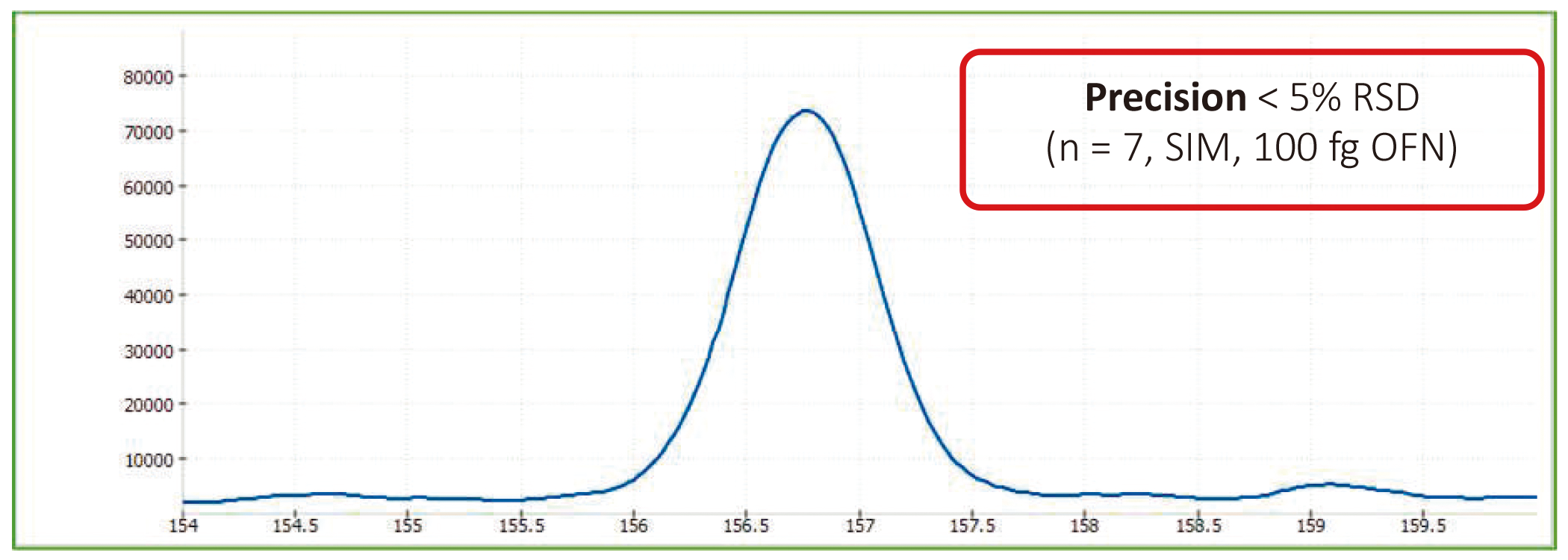

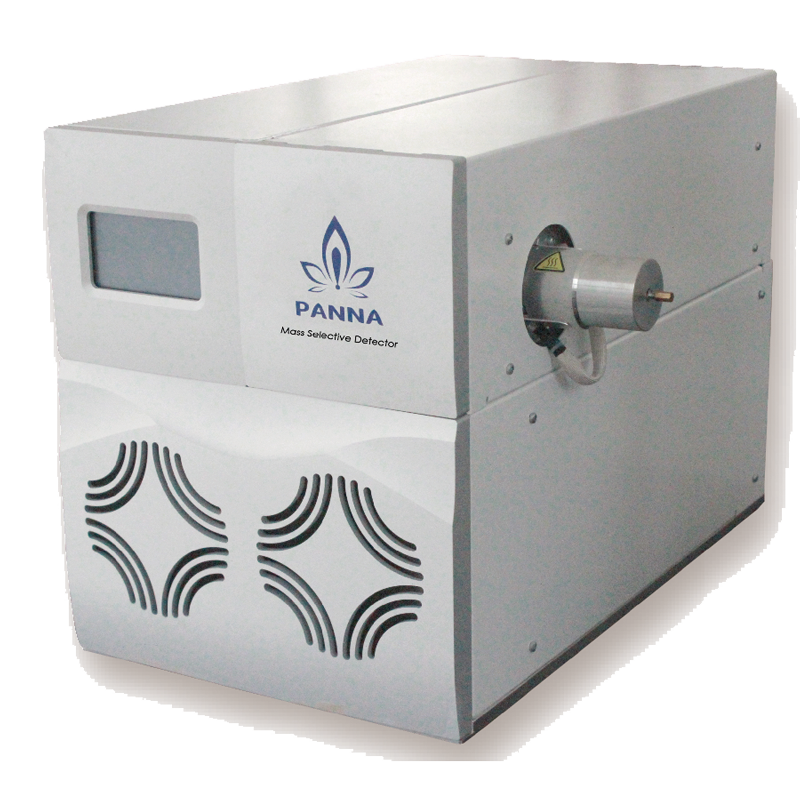

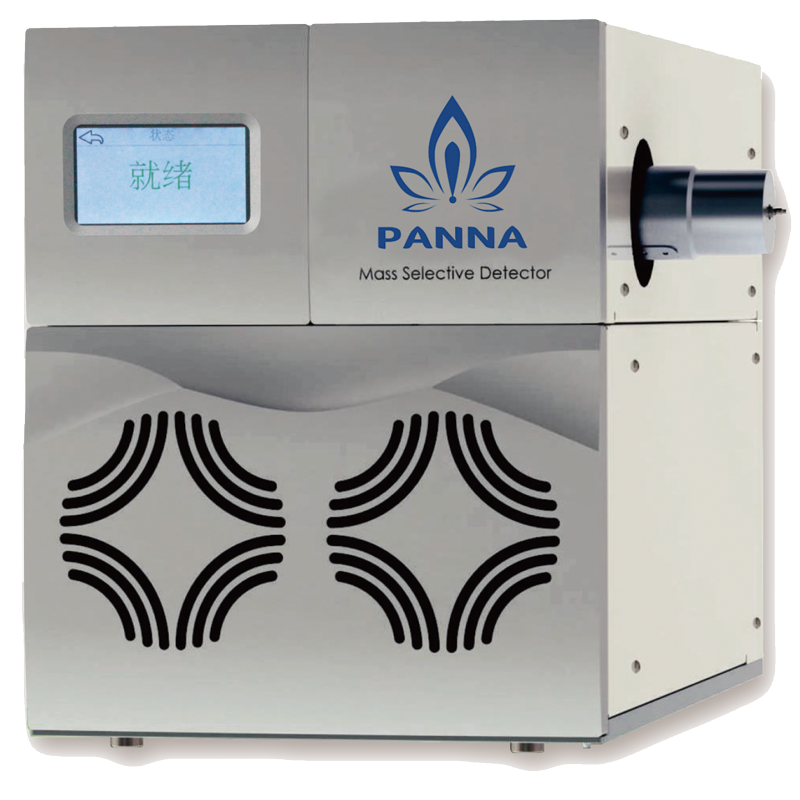

Standard operating modes of the quadrupole mass-analyzer, namely: SCAN, SIM, SCAN/SIM are complemented with unique µSCAN mode that extends detection capability of target analytes
Novel FlexibleSIMalgorithm improves search for traces of target analytes and increases confidence of their identification in complex extracts
